ZONESUN ZS-FAL180G5 Automatic Sauce Filling, Capping & Labeling Line
.jpg)

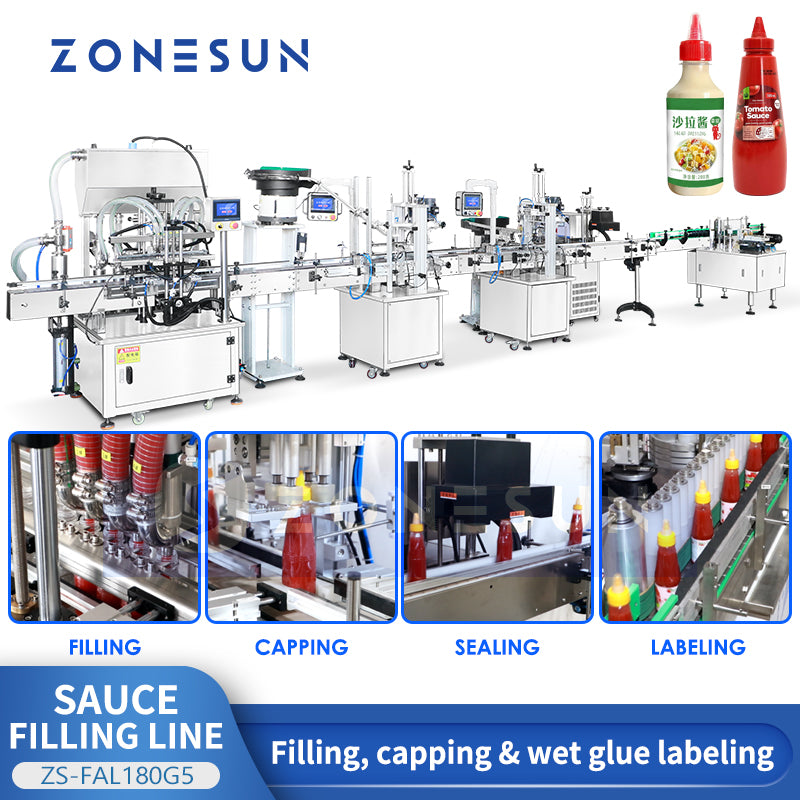

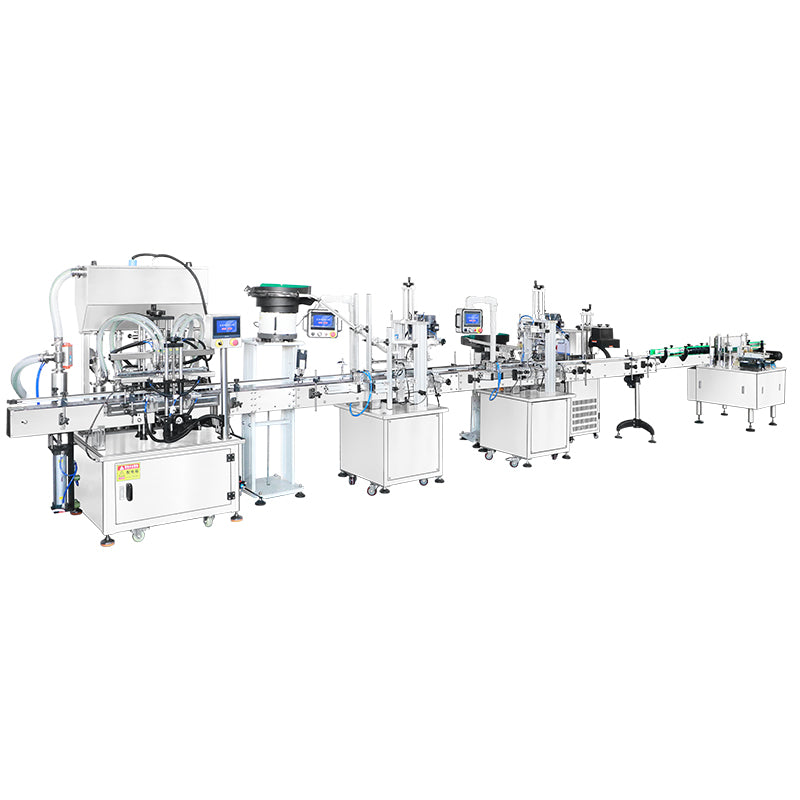

ZONESUN ZS-FAL180G5 — Automatic Sauce Filling, Capping & Labeling Line
A servo-driven sauce packaging line built around leakproof capping and wet-glue labeling for ketchup, dressing and similar products.
Is the ZS-FAL180G5 worth buying?
It's a strong fit if you're bottling sauces, dressings or similar viscous liquids and need capping that actually handles leakproof caps and narrow nozzles without a mess. The three configurable volume ranges (10–180 mL, 30–500 mL, 100–1000 mL) give it more flexibility than a single fixed-range filler, and wet-glue labeling is built for higher-volume runs rather than small-batch labeling.
Built specifically around sauce packaging quirks
Rather than a generic liquid filler, the ZS-FAL180G5 is positioned for sauce products — ketchup, salad dressing, seafood sauce — with servo filling, a dedicated cap-placing stage, capping suited to leakproof lids and narrow nozzles, and wet-glue labeling. Optional mixing and heating are available for products that need it.
Where this line earns its keep
Three configurable volume ranges
10–180 mL, 30–500 mL and 100–1000 mL configurations mean the line can be set up for small sample bottles or full-size retail sauce bottles rather than one fixed range.
Built for leakproof caps and narrow nozzles
Sauce bottles are notoriously fussy to cap without leaks or drips. This line's capping stage is specifically built around leakproof lids and narrow-nozzle formats at 10–25 bottles per minute.
Wet-glue labeling for high-volume runs
At 1,000–4,000 bottles per hour, wet-glue labeling is the right call for larger production runs, though it comes with more upkeep than simple pressure-sensitive labeling — glue supply and application need regular attention.
Mixing and heating for viscous sauces
Customizable mixing and heating options are available for thicker sauces that need to stay at temperature or agitated ahead of filling — worth specifying up front rather than retrofitting later.
Full spec sheet
| Filling volume range | 10–180 mL / 30–500 mL / 100–1,000 mL |
| Output speed (filling) | 30–50 bottles/min |
| Output speed (capping) | 10–25 bottles/min |
| Capping type | Leakproof caps and narrow-nozzle options |
| Labeling type | Wet-glue labeling, 1,000–4,000 BPH |
| Power | 110V/220V 50–60Hz, 2–3.6 kW depending on module |
| Filling unit dimensions | Approx. 2,000 × 800 × 1,800 mm |
| Weight | ~200 kg (filling), ~150 kg (capping), ~480 kg (labeling) |
Pros & Cons
Pros
- Three volume-range configurations cover small samples through full retail bottles.
- Capping is purpose-built for leakproof lids and narrow nozzles — a real pain point in sauce bottling.
- Wet-glue labeling handles genuinely high-volume runs (1,000–4,000 BPH).
- Optional heating/mixing for viscous sauces that need it.
- Modular filling/capping/labeling components can be scoped to your line.
Cons
- The labeling module alone weighs roughly 480 kg — real facility and floor-loading planning required.
- $28,822 is still a major investment even below the paste line's price.
- Wet-glue labeling needs glue supply and maintenance that simpler labelers don't.
- As B2B capital equipment, there's no public customer review history to cross-check against.
- Optional mixing/heating adds cost and complexity — decide up front rather than retrofitting.
Answers before you buy
What sauces is this line designed for?
Can it handle both small and large bottles?
Why wet-glue labeling instead of pressure-sensitive?
Do I need heating or mixing for my product?
What's the total footprint I should plan for?
Is there a warranty?
A strong pick specifically for sauce and condiment bottling
This line is clearly designed around the real headaches of sauce bottling — leaky caps and narrow nozzles — rather than being a generic filler stretched to fit. If that's your product category, it's worth the evaluation call with Zonesun; if you're filling thin liquids, look at their other lines instead.
