Zonesun ZS-AFC17 — Automatic Perfume Ceramic Pump Filling & Capping Machine
A compact monoblock for fragrance packaging, using dual ceramic pumps and an auto-feeding unscrambler to fill and cap EDT, EDP and Parfum bottles.
Is the ZS-AFC17 worth buying?
For a fragrance brand ready to automate small-batch filling, this is the most accessible of Zonesun's monobloc lines we've looked at — five figures rather than the paste and sauce lines' higher price points. Ceramic pumps are the right call for alcohol-based fragrance since they hold up better than some pump materials over repeated use, and the auto-feeding unscrambler cuts out a manual step most small operations still do by hand.
A monoblock built specifically for fragrance, not general liquids
The ZS-AFC17 is Zonesun's dedicated fragrance sample/bottle packaging monobloc: dual ceramic pumps for precise dispensing, paired with a vial-holding unscrambler that dual-channel feeds bottles into the line automatically, cutting out manual bottle placement.
What makes it suited to fragrance specifically

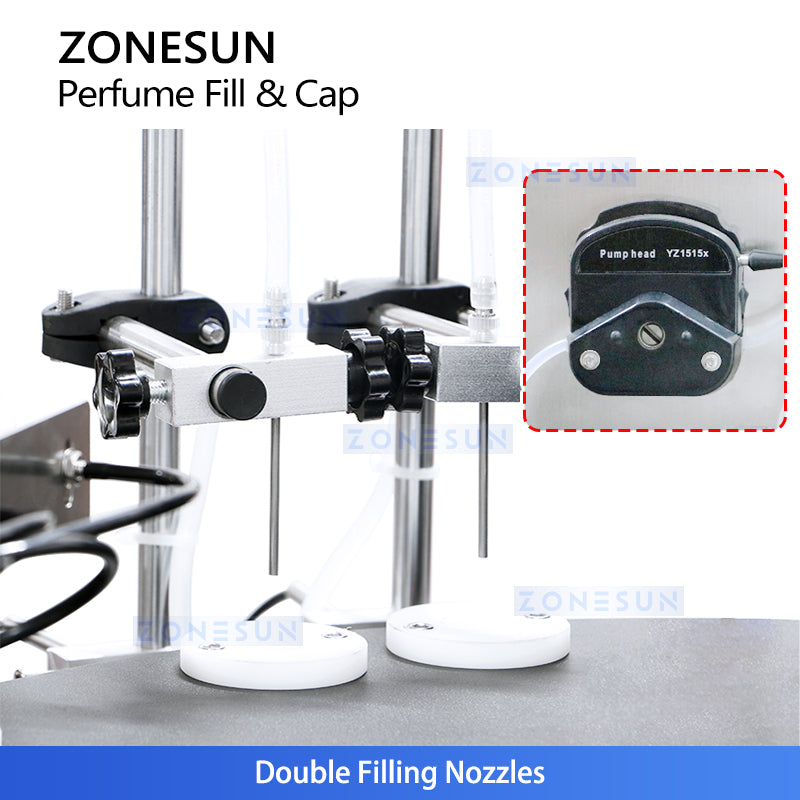

Dual ceramic pumps, ±1% accuracy
Ceramic pump filling suits alcohol-based fragrance well since it resists the wear that some pump materials show after repeated contact with solvent-heavy liquids, and the ±1% accuracy keeps fill levels consistent bottle to bottle.

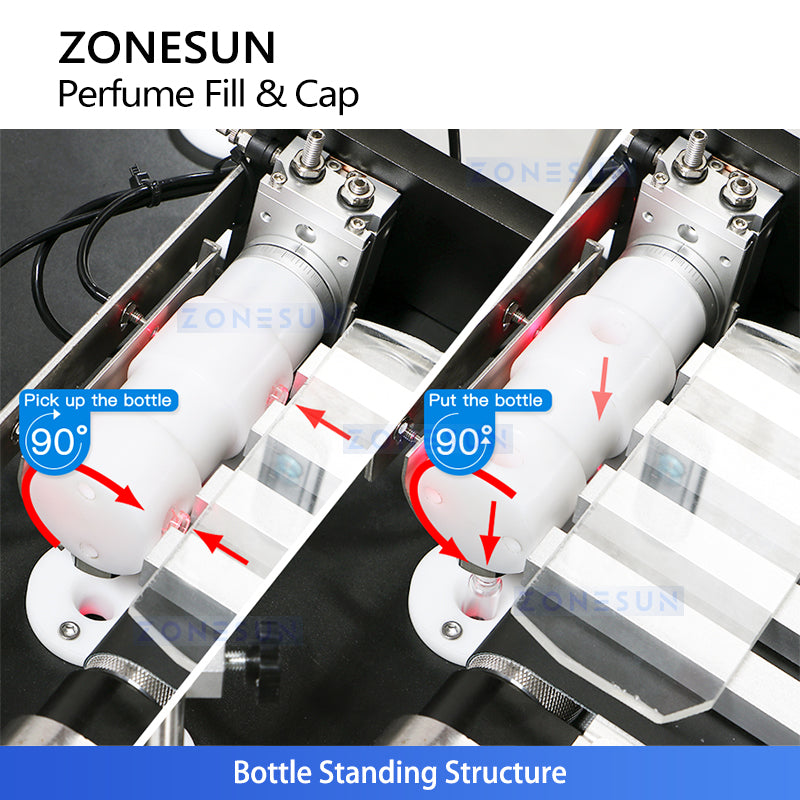

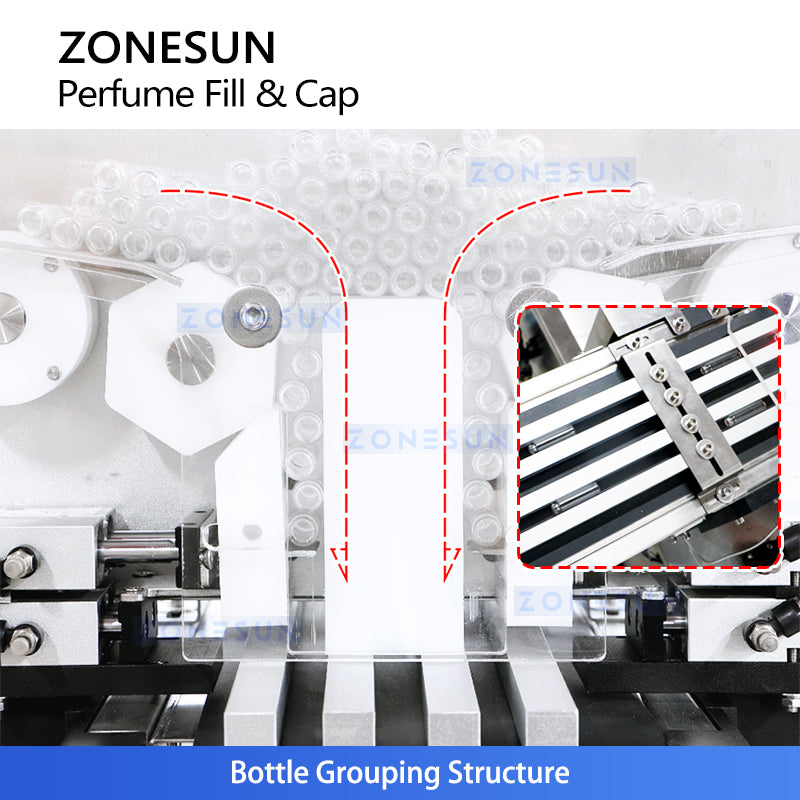

Auto-feeding unscrambler
The dual-channel unscrambler automatically feeds vials into the line, removing a manual step that a lot of smaller fragrance operations are still doing by hand.

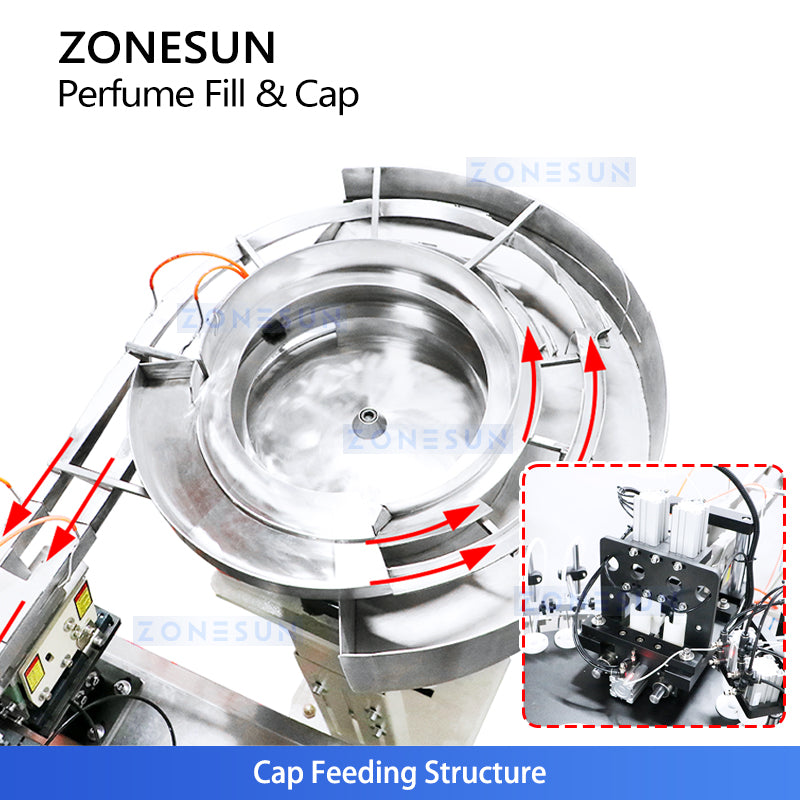

Integrated into the monobloc
Capping runs as part of the same monobloc rather than a separate machine, keeping the whole fill-and-cap sequence at roughly 40 bottles per minute.
More compact than Zonesun's paste and sauce lines
At roughly 2,300 × 1,500 × 1,700 mm, it takes noticeably less floor space than the larger paste and sauce lines, which matters for smaller fragrance operations working with limited production space.
Full spec sheet
| Filling volume range | 15–150 mL |
| Output capacity | ~40 bottles/min |
| Filling accuracy | ±1% or better |
| Pump type | Peristaltic + ceramic, 2 heads |
| Power requirement | 1.5 kW |
| Voltage options | 110V or 220V AC, 50/60Hz |
| Operating pressure | 0.4–0.8 MPa |
| Machine dimensions | Approx. 2,300 × 1,500 × 1,700 mm |
| Suitable formats | EDT, EDP, Parfum |
Pros & Cons
Pros
- The most affordable of Zonesun's monobloc lines reviewed here, at $15,199.
- Ceramic pump filling is well suited to alcohol-based fragrance over the long run.
- Auto-feeding unscrambler removes a manual bottle-placement step.
- More compact footprint than the paste and sauce lines.
- Dual voltage (110V/220V) support.
- ±1% filling accuracy keeps bottle-to-bottle fill levels consistent.
Cons
- Still a five-figure purchase — a real commitment for a small independent fragrance brand.
- The peristaltic/ceramic pump combo needs periodic maintenance and calibration.
- Vial shape compatibility with the unscrambler isn't detailed on the product page — confirm with Zonesun before ordering if you use unusual bottle shapes.
- No public customer star ratings, since this is B2B equipment bought on spec rather than reviewed like a consumer product.
Answers before you buy
What fragrance formats does the ZS-AFC17 handle?
Why ceramic pumps specifically?
Does it feed bottles automatically?
How much floor space does it need?
Can it handle unusually shaped bottles?
Is there a warranty?
The most accessible entry point into Zonesun's monobloc lines
If you're a fragrance brand specifically, this is a more approachable purchase than Zonesun's paste or sauce equipment — smaller footprint, lower price, and pump technology suited to the product. It's still a real capital purchase, so confirm bottle compatibility before committing.
